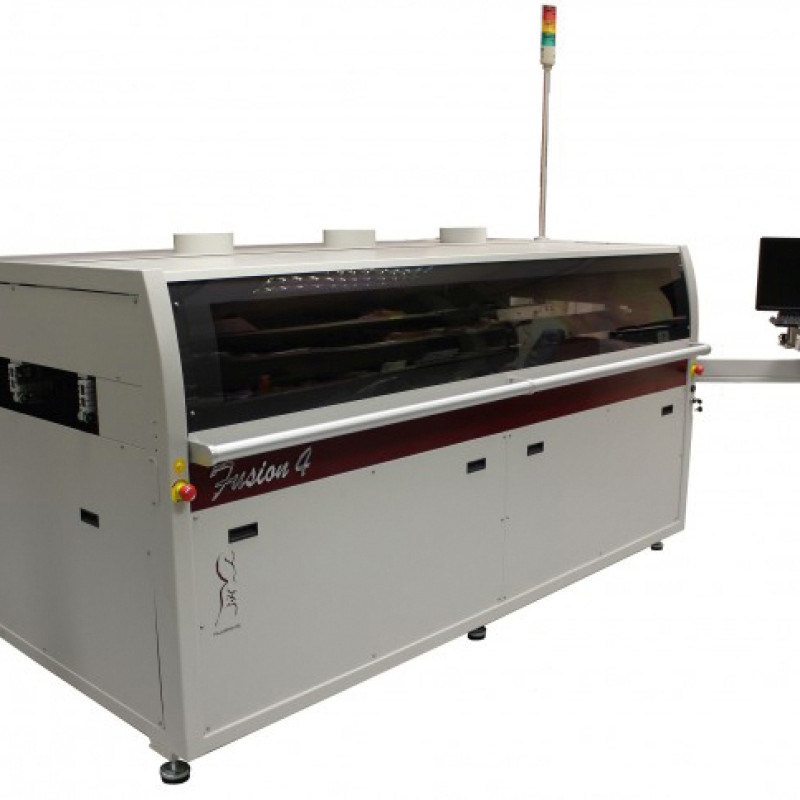

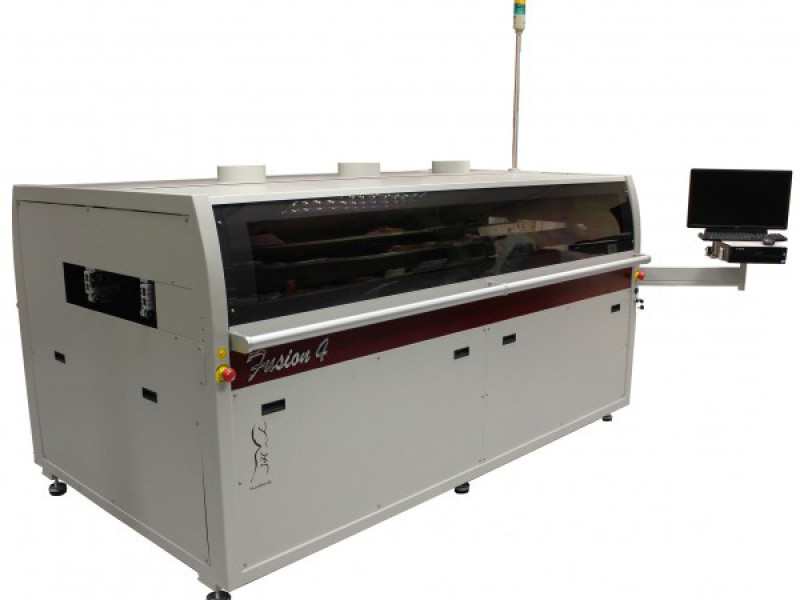

Highspeed Multi-Module Plattform with up to 4 Process Stations.

The Fusion Selective Soldering Concept offers fully integrated Inline soldering with two ,three or four Process Stations.



Features

Features

  • For PCB sizes up to 381 mm x 460 mm
  • Easy adaptable for different Applications
  • Useable for Inline and Stand Alone Prozesses
  • Integrated Drop-Jet-Fluxer
  • Ultrasonic Fluxhead for spezial Applications
  • Automatic Solder Nozzle Conditioning
  • Inert soldering atmosphere with low nitrogen consumption
  • Control system with self-diagnostic

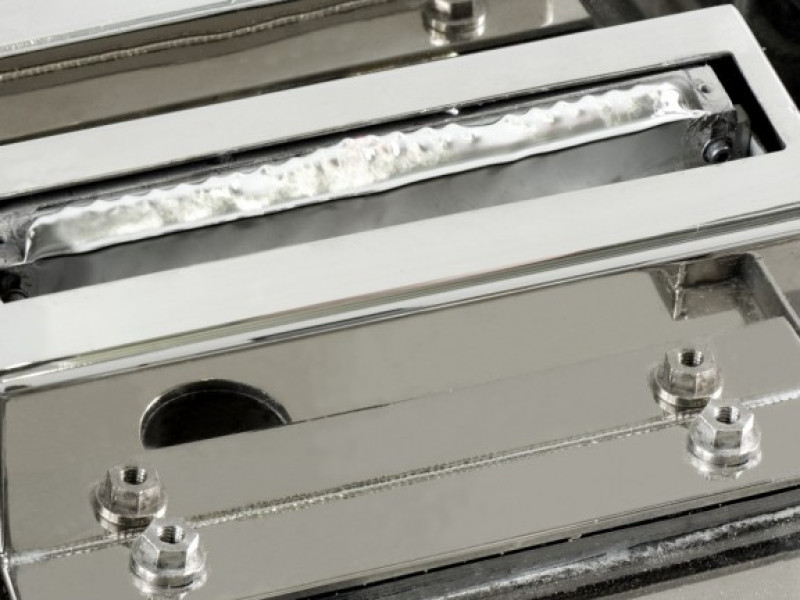

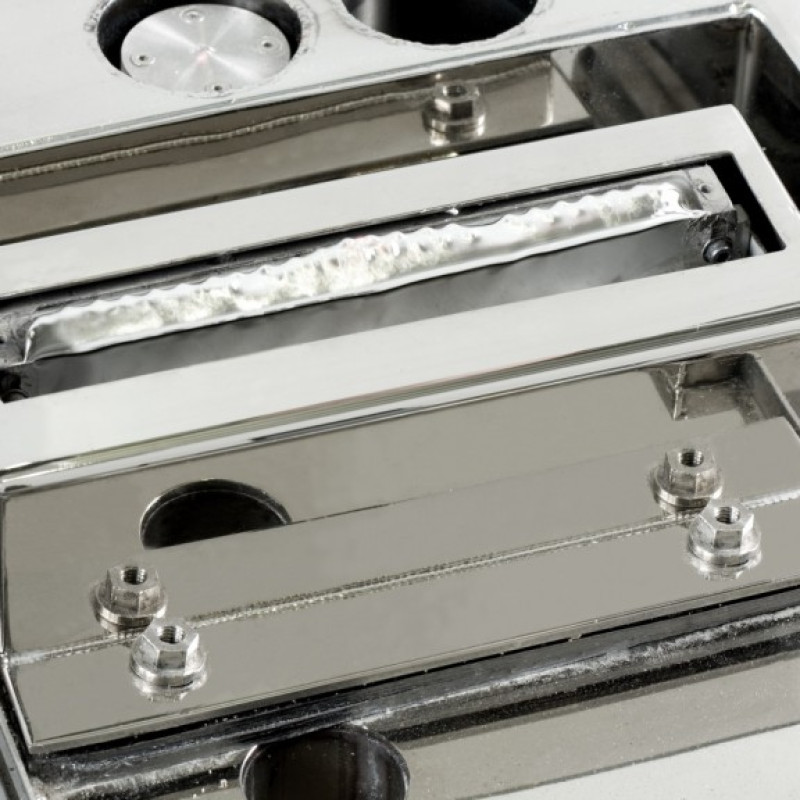

Options

  • Micro Soldernozzles down to 1,2 mm
  • IR PCB Topside Preaheat
  • IR PCB Bottomside Preheat
  • Pyrometer PCB Temperatur Measurement
  • Measuring and Control of Solder Wave Height
  • Laser based PCB Warp correction
  • PillarPad Offline-Programing System
